What and why

Fixes #1876. The reporter needs to adjust an artboard precisely. #2032 made the Artboards panel's options icon and menu open Artboard Options, but the dialog only has Name, Width and Height. The generic form (dialogs/form.rs) hides x and y for every dialog, because in the shape dialogs they are the click position. So an artboard's position could be dragged but not typed.

Artboard Options now shows X and Y after Width and Height, in the same grid, with the reference point locator before X:

• What X and Y show. They are where the reference point lies, counted from the ruler origin (Feature Request: Ability to customize and reset the ruler origin (Zero Point) #1212). These are the values the Transform panel and the Control bar show for the artboard with the Artboard tool.
• One shared reference point. The locator is the one the Transform panel, the Control bar and Properties share, so choosing a point in the dialog also changes it in those panels.
• Typing a position. A typed X or Y moves the artboard so that its reference point lands there. This uses the same panels::transform::artboard_rect as the panels.
• Changing the size. A new Width or Height keeps the reference point in place, as the panels' W and H do. With the default center point the artboard grows about its center. With Top Left it grows from its top-left corner, as every size typed in the dialog did before.
• What OK sends is unchanged. The fields still hold the top-left corner in document points, so confirm doesn't change:
  • OK runs artboard.setProps (artboard.new for Alt-click on New Artboard) in one undo step.
  • Move Artwork with Artboard still applies.
  • Setting the fields over the control channel or MCP works as before.
• New artboards. Alt-click on New Artboard (ui.newArtboard) gets the same rows, so a new artboard's position can be typed too.
• The shape dialogs don't change. form::grid still hides their x and y. The new form::grid_then lets a dialog add rows to the generic grid, so the labels and fields line up.

Public references:

• Resize artboards: in Artboard Options you choose one of nine reference points in the Reference Point grid, then X and Y.
• Create and add new artboards: the same grid and X and Y place a new artboard.

Docs:

• docs/target-app-parity.md: an evidence line under the artboards, the status line and the revision history. Scores unchanged.
• docs/ui-parity.md: a row in the artboards section, the status line and the revision history.
• docs/mcp.md: the dialog's x and y are the top-left corner in document points, while the dialog shows X and Y at the reference point, counted from the ruler origin.

How it was tested

New headless pointer and key tests in crates/ui-egui/src/dialogs/tests.rs, on a 400 × 300 pt artboard with the ruler origin at (120, 50):

• artboard_options_x_and_y_count_from_the_ruler_origin_at_the_reference_point:
  • At the default center point the dialog shows X 80 pt and Y 100 pt.
  • After a click on the locator's Bottom Right it shows 280 pt and 250 pt.
  • Typing X 300 and Y 0, then Enter, puts the artboard at (20, −250)–(420, 50) in one undo step, and Undo restores it.
  • A Rectangle dialog still shows no X and Y.
• artboard_options_size_keeps_the_reference_point:
  • Width 500 at the center point keeps X at 80 pt and gives (−50, 0)–(450, 300).
  • With Top Left it gives (0, 0)–(500, 300).

Both fail on main (the dialog has no X). With only the size part of the change reverted, the second fails (X reads 130 pt) and the first passes. Frames::button now goes through a new Frames::control(label, role), which also finds the locator's squares.

Checks, on main at f7de3d6:

• cargo fmt --all -- --check.
• cargo clippy -p vectorcraft-ui-egui --all-targets -- -D warnings.
• cargo test -p vectorcraft-ui-egui --lib dialogs::tests: 166 passed.
• cargo test -p vectorcraft-ui-egui: 1583 passed on the earlier base, 8c10185. Rebasing onto f7de3d6 conflicted only in docs/target-app-parity.md.

Screenshots from the headless egui_kittest (wgpu) harness, drawn the way dialogs/save_options.rs and panels/image_trace.rs draw theirs: Medium Dark, the same 400 × 300 pt artboard and ruler origin. The capture code was a local test and isn't in this PR.

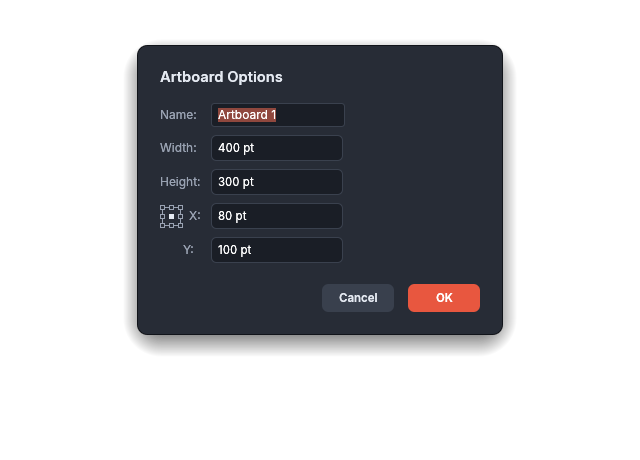

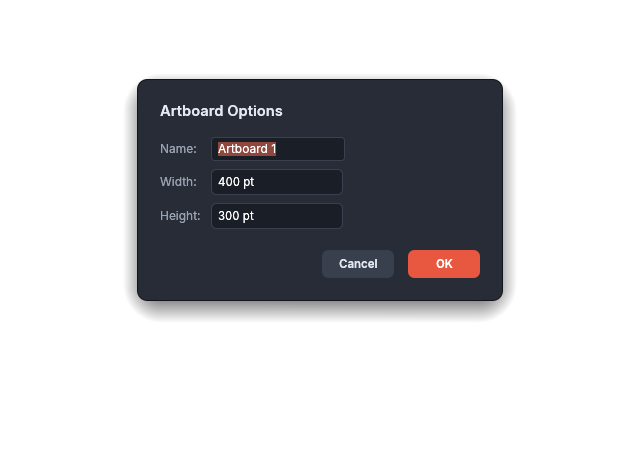

Before / after:

Before	After

Merging with open PRs

• Artboards: Width, Height, Preset and Orientation apply to every selected artboard #2565 (Width and Height go to every selected artboard):
  • Text conflicts in the module comment of dialogs/artboard_options.rs, and in dialogs/tests.rs, where both add tests after the same test. Keeping both sides resolves them.
  • Behavior: with both merged, a new Width resizes the dialog's artboard about the reference point. Artboards: Width, Height, Preset and Orientation apply to every selected artboard #2565 resizes the other selected artboards keeping their top-left corners. They should probably all use the reference point; that can be settled when the second of the two lands.
• Artboards: each artboard can have a background color on the canvas #2403 (artboard background color): it also gives Artboard Options its own body.
  • The merged body calls form::grid_then with the X and Y rows, then adds the Background Color row.
  • dialogs/tests.rs: keep both.

Not in this PR

• Properties. Edit Artboards in Properties shows the X and Y of the artboard's top-left corner, with no locator. The Transform panel and the Control bar use the reference point, and so does this dialog, which has the locator. Making Properties match them is a separate change.
• Artboard rulers. With artboard rulers (a new document's), the ruler origin is the active artboard's corner. So the active artboard's own X and Y count from its own corner, here as in the Transform panel and the Control bar: at Top Left they read 0, 0, and a typed value moves the artboard by that much. Whether artboard positions should count from the global rulers is a question for all three.

Checklist

• cargo xtask ci passes (fmt, clippy, tests, assets, brands, layers, wasm). Not the full run: fmt, and clippy and the tests of the changed crate (vectorcraft-ui-egui), were run locally.
• No panics in shipped code: no unwrap(), expect(), panic!, unreachable!, todo! or
  unimplemented! outside tests, and no unchecked indexing on data from files, parameters or
  messages. Errors are returned as Result and shown to the user
  (why and how).
• Clean-room: nothing copied from Adobe products or GPL/AGPL code (AGENTS.md).
• Every new asset has a row in ASSETS.md. (No new assets.)
