Garuda

Garuda is a Swift web framework and the HTTP server underneath it. It is my attempt to create a spiritual successor to Kitura: a server written in Swift, with its own HTTP engine, for the protocols and the application features a production service needs today.

The application API is modelled after axum. Routes, typed extractors, and the set of features a production framework is expected to offer follow axum's shape. Garuda and axum compares the two area by area. The HTTP engine is Garuda's own.

The same route in each. axum names the parameter in braces; Garuda uses a colon. Both take it as a typed Path and answer JSON.

// axum
async fn person(Path(id): Path<i32>) -> Json<Person> {
    Json(Person { id, name: "Ada".into() })
}

let app = Router::new().route("/person/{id}", get(person));

// Garuda
app.get("/person/:id") { (id: Path<Int>) async in
    JSON(Person(id: id.value, name: "Ada"))
}

The key difference is where the handler runs. axum makes every handler a future and runs it on Tokio, a work-stealing scheduler: an idle thread takes a waiting task from a busy one. SwiftNIO is that design in Swift. An event loop owns the socket, and the handler is a task the runtime resumes.

Garuda does not use either. The worker thread that read the request runs the handler, and a response that can be sent at once is written on that thread. There is no hop onto a scheduler before those bytes go out, which is what SwiftNIO would insert between the read and the write. The engine parses HTTP/1.1, HTTP/2 and HTTP/3 itself.

A worker is one process and one thread. Nothing is shared across workers, so nothing is locked, and a crash takes only that worker's connections. That boundary matters more in Swift than in Rust: a force-unwrapped nil ends the process, where Tokio catches a panic inside the task that raised it. Processes cannot steal tasks from each other. A worker that is ahead leaves new connections to the others, and can hand idle HTTP/1 keep-alive connections to a worker where they would not wait (--balance). One process per worker has the rest.

Swift 6.2 or newer. No Foundation, no SwiftNIO.

This project is an independent effort. It is not an IBM product, and it is not a continuation maintained by the Kitura project.

Released: 1.0. The surface below is implemented and tested. COMPATIBILITY.md says what a release may change, and Status below lists what is missing.

Features

Area	What Garuda provides
HTTP	HTTP/1.1 with a parser strict where that prevents request smuggling, HTTP/2 over TLS and in cleartext, and HTTP/3 over QUIC
TLS and certificates	TLS 1.2 and 1.3, several certificates chosen by SNI, and ACME renewal with tls-alpn-01 on the port already served
Handlers	Routes, groups, and middleware. A synchronous handler is a direct call on the worker thread. An async handler runs on a task reused from that worker's pool
Typed API	Extractors for path, query, JSON body, form, and multipart. Answers as JSON, HTML, text, bytes, or a redirect. A type can validate its values; every broken rule is returned together as 422
OpenAPI	An OpenAPI 3.1 document generated from the routes, and Swagger UI
Application middleware	Deadlines, CORS, bearer and basic authentication, authorization policies, CSRF protection, security headers, signed and encrypted cookies, and sessions in memory, Redis, or SQLite
Identity	JWT (HS, RS, PS, ES, and EdDSA), JWKS verification, rotating refresh tokens, and PBKDF2-HMAC-SHA256 password hashing
HTTP client	HTTP/1.1 and HTTP/2, redirects by policy, decompression, streamed bodies, and server-sent events
Data	PostgreSQL and Redis on the worker's poller, including Redis Cluster and Sentinel, and SQLite through the system's libsqlite3
Streaming	Streamed responses and request bodies, server-sent events, broadcast across worker processes, and interim 1xx responses such as 103 Early Hints
WebSockets	WebSockets over HTTP/1.1, HTTP/2, and HTTP/3. The engine joins fragments, checks UTF-8, answers pings, and supports permessage-deflate
WebTransport	WebTransport over HTTP/3 on the same port and routes, with bidirectional and unidirectional streams and datagrams
IETF Resumable Uploads	The IETF resumable upload protocol (draft-ietf-httpbis-resumable-upload, interop version 9). A client cut off mid-upload resumes on any worker and over any of the three HTTP protocols
Files and compression	Static files with sendfile, ETag, and byte ranges, including precompressed copies. Response and request compression with brotli, zstd, and gzip
Request limits	A body limit and a concurrency limit on a group of routes. Rate limiting counted across workers
Edge policy	HTTPS redirect, HSTS, trusted proxy headers, allowed hosts, and client address allow and deny lists
Operations	Prometheus metrics, health checks, request IDs, W3C trace context, an access log, a shared response cache, graceful shutdown, and reload on SIGHUP. Unix sockets and more than one worker
Tracing	Spans through swift-distributed-tracing for the request, outbound HTTP, PostgreSQL, and Redis
Tests	`app.test` runs the real engine in the test process, over a socket pair
Process model	A supervisor accepts connections and forks one process per worker. In-memory state is per worker
Platforms	Linux and macOS 15, on Swift 6.2 or newer

Outside this release: QUIC 0-RTT and QUIC session resumption, kernel TLS, multipart/byteranges, reads from Redis replicas, and Windows other than through WSL 2.

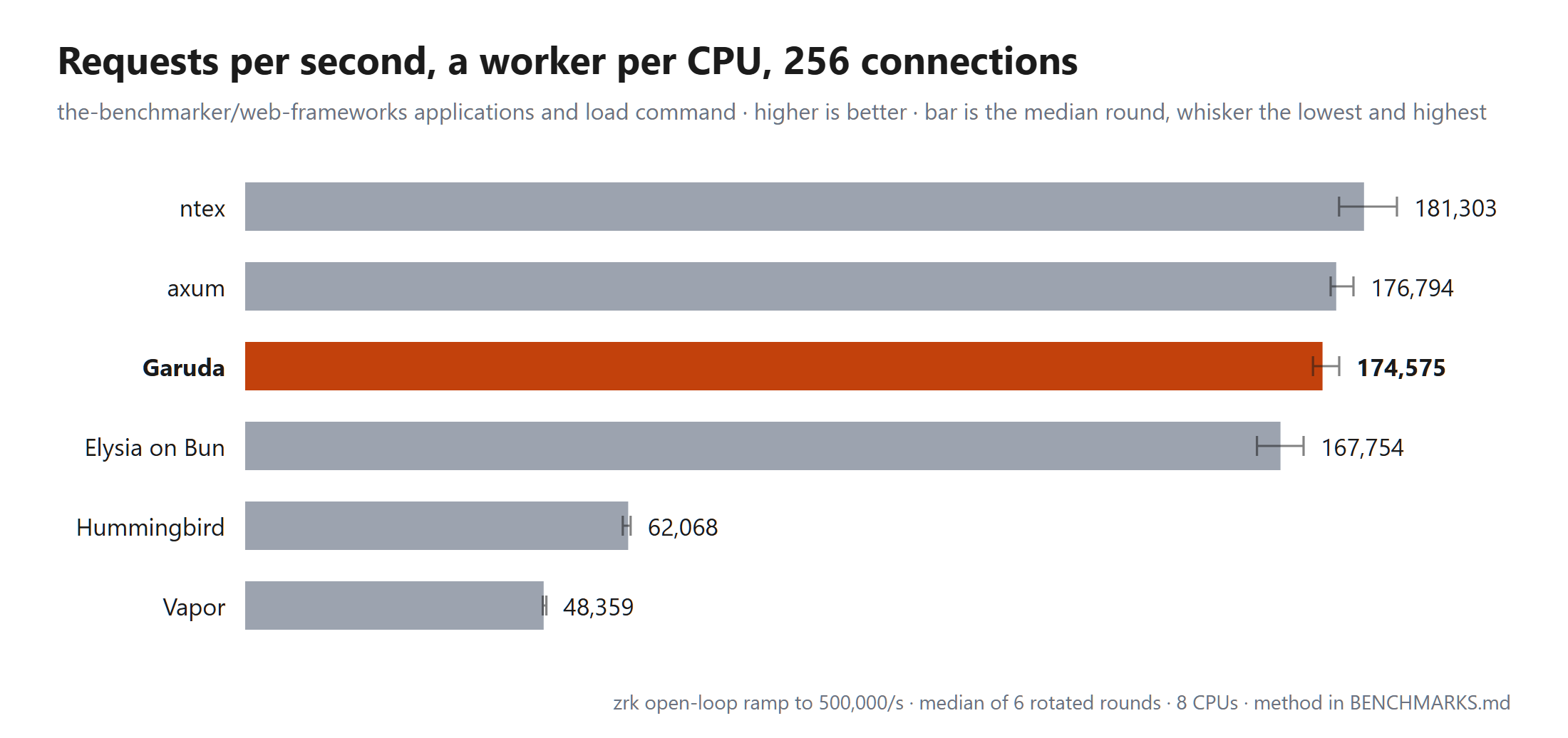

Every server runs the same three-route application and the same load command, each in an invocation of its own, and the six rotate so that no server is always measured last. Garuda's range and axum's overlap, so these rounds do not separate them; ntex is ahead of both, and Garuda is 2.8x Hummingbird and 3.6x Vapor. BENCHMARKS.md has the method, the rounds behind each bar, and the runs where Garuda is slower.

External benchmark: the-benchmarker measures Garuda on its own hardware and load command. The chart above is a separate run on our hardware.

Quick start

swift build -c release
.build/release/garuda --port 8000 --workers 0
curl -i http://127.0.0.1:8000/user/42

The garuda binary serves a small benchmark application. Your own application depends on the Garuda library:

// Package.swift
dependencies: [.package(url: "https://github.com/grepjava/garuda", from: "1.1.0")],
targets: [.executableTarget(name: "app", dependencies: [.product(name: "Garuda", package: "garuda")])]

// Sources/app/main.swift
import Glibc   // Darwin on macOS
import Garuda

struct Person: Codable { let id: Int; let name: String }

let app = Application()
app.get("/person/:id") { (id: Path<Int>) async in
    JSON(Person(id: id.value, name: "Ada"))
}
exit(app.run())

app.run() reads the same command-line flags as the garuda binary. Swift 6.2 or newer, on Linux or macOS 15 -- 6.2 because a borrowed body is a Span. INSTALLATION.md lists the system packages, certificates and running as a service.

Examples/ has complete applications to run and copy from: a CRUD API on SQLite, accounts with hashed passwords and sessions, streaming both ways, chat rooms over WebSockets across workers, a file service with resumable uploads and ranged downloads, per-user photo uploads that are authenticated and resumable, a network probe over WebTransport, and a whole starter application on PostgreSQL.

Writing handlers

Routes and typed handlers

Routes are registered with get, head, post, put, delete, patch, options, or on. A path segment is a literal, a parameter (:param), or a trailing rest segment (*rest). HEAD falls back to GET, and a known path under the wrong method is 405 with Allow.

A handler declares what it needs and returns what it means:

app.get("/search") { (query: Query<Search>) async in JSON(results(for: query.value)) }
app.post("/people") { (body: Body<NewPerson>) async in JSON(create(body.value), status: .created) }
app.post("/login") { (form: Form<Credentials>) async in Redirect(to: "/") }

Extractors: Path<T> (the next path parameter, percent-decoded), Query<T>, Body<T> (JSON), Form<T>, Multipart, State<T>, Context<Key>, or your own RequestExtractor. An AsyncRequestExtractor may await, to load the signed-in user from a database, for an async handler. E? is nil where E would refuse, and Result<E, any Error> hands the handler the refusal. A value that will not decode is a 400 that says what was wrong.
Answers: JSON, HTML, Text, Bytes, Redirect, a String, an HTTPStatus, or an Optional whose nil is a 404.
Errors: a thrown ResponseError is the response. throw HTTPError(.conflict, "the name is taken") answers 409 with {"error":"the name is taken"}. Anything else thrown is a 500 and a log line.
Rules: a type saying what its values have to be, beyond their shape, conforms to Validated, and whatever is decoded from a request is held to them before the handler runs.

struct NewOrder: Decodable, Validated {
    let quantity: Int
    let email: String

    func validate(_ check: inout Validation) {
        check.range("quantity", quantity, atLeast: 1, atMost: 100)
        check.email("email", email)
    }
}

Every broken rule is answered at once, as 422 with the fields named: {"error":"quantity must be at least 1","fields":[{"field":"quantity","message":"must be at least 1"}]}. A decoding failure fills fields the same way, from the path it already reports, so one answer tells a form where each message goes whichever of the two refused the request.

JSON goes through Garuda's own coder over Encodable and Decodable, which reads only the keys a type asks for, straight from the request bytes. @JSON takes a type off Codable altogether:

import GarudaJSON

@JSON struct Order: Codable {
    let id: Int
    let name: String
    let tags: [String]
}

Nothing at the call site changes -- the same Body<Order>, the same JSON(order) -- and the type keeps Codable for everything else. @PostgresRow, from GarudaSQL, does the same for a database row: a property is read from the column of its own name, and first(Item.self, ...) is written the same way either way. The macro writes the reading and the writing out longhand; the bytes are the same ones Codable sent, and the json workload's request went from 15.6 microseconds to 13.2 on one worker. It lives in its own module because it is the only part of Garuda that needs swift-syntax.

The raw layer

Under the typed API, a handler can take the request and response directly:

app.onAsync(.get, "/user/:id") { request, response in
    request.withParameter(0) { response.send($0) }   // lent bytes, no copy
}

Request and Response are ~Copyable. The request lends its bytes to a closure as a Span, which the compiler keeps from escaping (withPath, withHeader, withBody and others). path, header(_:), body and the rest return owned copies.

Async handlers, deadlines and the HTTP client

A closure that awaits is an async handler. It runs on a task reused from the worker's pool, on the worker's own thread, and allocates nothing per request once warm.

app.deadline(milliseconds: 500) {
    app.onAsync(.get, "/weather/:city") { request, response in
        let client = request.client              // read before the first await
        let city = request.parameter(0)
        let answer = try await client.get("https://api.example.com/\(city)")
        response.send(bytes: answer.body, contentType: "application/json")
    }
}

A request still unanswered at its deadline is answered 504. A closed connection or reset stream cancels a handler waiting on the engine. request.client speaks HTTP/1.1, and HTTP/2 over TLS when the server offers it. It resolves names on the worker's poller and keeps connections for reuse. It asks for gzip, deflate, brotli and zstd and decodes what comes back, and it follows redirects only when client.redirects says to: .sameOrigin(), .any() or .matching { url in … }. client.timeoutMilliseconds bounds each wait; client.totalTimeoutMilliseconds bounds the whole exchange, redirects included, for work no route deadline covers.

client.stream returns once the response head is in, and the body is read as it arrives -- a large file relayed on, an upstream's server-sent events, a model's tokens -- rather than held whole:

app.onAsync(.get, "/relay") { request, response in
    let client = request.client                  // read before the first await
    let upstream = try await client.stream(.get, "https://llm.example/v1/stream")
    let body = response.stream(contentType: "text/event-stream")
    while let event = try await upstream.nextEvent() {
        try await body.write("data: \(event.data)\n\n")
    }
}

A streamed body is not held to maxBodyBytes. A caller that stops reading stops the upstream: over HTTP/1.1 by TCP's window, over HTTP/2 because the stream's window opens only as the caller reads. cancel() gives up the rest.

State, groups and middleware

app.state { _ in PostgresPool(PostgresConfiguration(host: "db", user: "app", password: secret)) }

app.group("/api") {
    app.cors(CORSPolicy(origins: ["https://app.example.com"], allowCredentials: true))
    app.authenticate(bearer: CurrentUser.self) { token in try await sessions.user(token) }
    app.use { request, response async throws -> (any ResponseConvertible)? in
        response.onSend { outgoing in outgoing.addHeader("cache-control", "no-store") }
        return nil
    }
    app.get("/user/:id") { (id: Path<Int>, db: State<PostgresPool>) async throws in
        try await db.value.first(User.self, "select id, name from users where id = $1", id.value).map { JSON($0) }
    }
}

app.state builds a value once in each worker process, after the fork. One value per type; registering a type twice is refused.
app.problems() is what the routes cannot do, found before serving: a handler taking more Path extractors than its pattern has parameters, or asking for a State<T> nothing registered. run() prints them and exits 2 instead of starting, and a test can assert app.problems().isEmpty.
app.use runs before every route in its scope, whether it is called before or after the routes. It returns nil to carry on or an answer to send instead, and can be async. response.onSend sees and changes the final response, whoever answered.
request[context: Key.self] carries values from middleware to the handler, which reads them with Context<Key>.
app.cors sets the scope's CORS policy. It answers preflights, including to paths routed only for other methods, and runs ahead of the scope's middleware, so a preflight never meets authentication and a 401 still reaches the page.
app.authenticate(bearer:) and app.authenticate(basic:) read the Authorization header and keep who it belongs to in the context, or answer 401 with the challenge. With state:, the check is handed what app.state built, such as the database sessions live in. BearerToken and BasicCredentials are the same as extractors, and constantTimeEquals compares secrets.
app.authorize(CurrentUser.self, .admin) requires a named rule of every route in the scope, once authenticate has said whose request it is. A Policy is (Value) -> Bool with a name, combined with and, or and about, and callable in a test without a request. A rule that does not hold is 403 saying what would have been enough; nobody under the key is 401. authorize(jwt:) reads the claims a scope verified, and Policy.scope("orders:write") an OAuth 2.0 scope in them. Both authenticate and authorize add what they can answer, and the security scheme, to every route of the scope in the OpenAPI document.
JWT<Claims> takes a verified JSON Web Token (HS, RS, PS, ES or EdDSA), keys from PEM, JWK or a secret, with exp, nbf, iss and aud checked; keys.sign(claims) issues one and keys.publicJWKS publishes the key set. JWKSVerifier checks tokens from an identity provider against its JWK Set. TokenIssuer pairs short-lived access tokens with refresh tokens that rotate on every use and revoke their whole chain when a spent one is reused.
Passwords.hash and Passwords.verify use PBKDF2-HMAC-SHA256 on the blocking pool. Tokens.random() makes a session token and Tokens.digest what to store in its place.
request.log.info("order placed", ["order": "\(id)"]) writes to the application log with the request's method, path, request ID and trace context on the line. AppLog is the same log outside a request. --log-format json makes every line one JSON object.
app.onResponse { done in … } sees every request once it is answered: the matched route's pattern, status, duration, request ID and trace, and why a route failed. This is what per-route metrics or error reporting hang from.
app.maxBodySize(64 << 20) { … } gives a scope's routes a body limit of their own in place of --max-body, applied before the body is read. app.concurrencyLimit(8) { … } lets that many of a scope's handlers run at once in each worker, and answers the next 503.
request.cookie("theme") and response.setCookie(Cookie("theme", "dark")) read and set cookies. A cookie is Path=/, HttpOnly and SameSite=Lax unless it says otherwise, and Secure over HTTPS. With a CookieKey, a cookie is signed (HMAC-SHA256) or encrypted (AES-256-GCM), and one that was tampered with reads as absent. The key takes previous secrets for rotation.
app.sessions(store: …) gives a scope's routes a Session: a map of strings kept in memory, Redis or SQLite, found by a random ID in a cookie. try await session.set("user", id) writes it to the store before it returns. session.renew() moves it to a new ID at login, and session.destroy() deletes it and its cookie.
app.csrfProtection() refuses, with 403, a POST, PUT, PATCH or DELETE that the browser says another site's page started, from Sec-Fetch-Site or else Origin against Host. It needs no tokens in forms. trustedOrigins lets a front end on another origin through.
app.securityHeaders() puts nosniff, frame, referrer and cross-origin policies on every answer in its scope, and Strict-Transport-Security on those over HTTPS. A Content-Security-Policy is one field away, and a header a route sets itself is kept.
app.trailingSlash(.redirect) answers /users/ with a 308 to /users when only that is routed, and .ignore serves it from /users directly. Routes match exactly by default.
app.requestDecompression() decodes a gzip, deflate, br or zstd request body before the handler reads it, held to the route's body limit as it inflates.
app.allowedHosts(["example.com", "*.example.com"]) answers 400 to a request for any other Host, and app.addressFilter(allow: ["10.0.0.0/8"]) answers 403 to a client address outside the list or on a deny list.

Tracing

app.tracing() traces through swift-distributed-tracing, so any tracer written for it records the spans, the OpenTelemetry exporters among them:

import Tracing

app.onWorkerStart { _ in
    InstrumentationSystem.bootstrap(makeTracer())   // any Tracer
}
app.tracing()

Each request is a server span named for its route, GET /users/:id, continuing the trace its headers carry. Under it are child spans for every call request.client makes, which passes the trace on in its headers, and for every PostgreSQL statement and Redis round trip. Spans a handler starts with withSpan go under it too. The attributes follow OpenTelemetry's HTTP and database conventions. SQL is recorded as written; bound values, Redis keys and values, and query-string values in URLs are not. A streamed response's span ends with its last byte, not its head.

Workers are processes, and an exporter's threads do not survive the fork, so the tracer is made in each worker: bootstrap it in onWorkerStart, or pass app.tracing { worker in … } a closure that returns one. With tracing off, each request pays one check.

OpenAPI

app.openAPI(OpenAPIInfo(title: "Shop", version: "1.0.0")) serves an OpenAPI 3.1 document at /openapi.json, and app.swaggerUI() serves Swagger UI at /docs. The document comes from the routes: a typed route's extractors and return type give its parameters, request body, security and response, with JSON Schemas read from the Decodable types, so nothing needs annotating. Every route method returns an OpenAPIOperation for what types cannot say:

app.get("/orders/:id") { (id: Path<Int>) async throws in JSON(try await order(id.value)) }
    .summary("An order by its number")
    .tags("orders")
    .response(.notFound, "No order has that number")

PostgreSQL

A native driver runs on the worker's poller. It supports SCRAM-SHA-256, TLS (required by default) and a pool per worker with an acquire timeout. Rows decode into Decodable types by column name. db.transaction { tx in … } commits or rolls back. Statements stay prepared on each connection, and values are read in binary after the first run. UUID, Timestamp, PostgresDate, PostgresTime, PostgresInterval, PostgresNumeric (exact, kept as its digits) and PostgresJSON<T> come without Foundation. An array column is a Swift list -- [String] for text[] -- and a list binds as one. app.listen hears NOTIFY in each worker, on a connection of its own, reconnecting with its channels when the server restarts. copyIn and copyOut are COPY in both directions, a chunk at a time; a composite type is a PostgresRecord and an enum is a Swift enum; and a server on this machine is reached over its unix socket.

Redis

app.state { _ in RedisPool(RedisConfiguration(host: "cache", password: secret)) }

app.get("/visits/:page") { (page: Path<String>, redis: State<RedisPool>) async throws in
    String(try await redis.value.incr("visits:\(page.value)"))
}

A native driver runs on the worker's poller, speaking RESP3 through HELLO and RESP2 to servers older than Redis 6; Valkey works the same. TLS is required by default, and ACL users, databases and unix sockets are supported. Commands come with typed replies (get, set with expiry and NX/XX, hashes, lists, sets, getJSON), and send takes any other. pipeline and transaction go in one round trip, session holds one connection for WATCH, and subscribe listens to channels and patterns on a connection of its own.

RedisCluster is the same API across a cluster: a pool per node, a slot map learned from the cluster, and every command aimed at the node that owns its key -- following MOVED and ASK when the map is behind. RedisSentinelPool asks a set of sentinels where the master is, checks what they name with ROLE, and asks again when a failover takes it away. Garuda's session and refresh-token stores work on either.

SQLite

app.state { _ in
    let db = try SQLiteDatabase(SQLiteConfiguration(path: "/var/lib/app/app.db"))
    try db.migrate(["create table notes (id integer primary key, text text not null)"])
    return db
}

app.get("/note/:id") { (id: Path<Int>, db: State<SQLiteDatabase>) async throws in
    try await db.value.first(Note.self, "select id, text from notes where id = ?", id.value).map { JSON($0) }
}

The system's libsqlite3 is loaded at run time, and every statement runs on the worker's blocking pool, so a worker keeps serving while SQLite reads the disk or waits for another process's lock. Each worker has one connection that writes and up to four that read, in write-ahead-log mode; a statement moves to a reader once SQLite has said it cannot write. Rows decode into Decodable types, transaction begins IMMEDIATE, and migrate brings the schema up to date by user_version when each worker starts.

Streaming, server-sent events, WebSockets and WebTransport

app.get("/export") { () async in
    StreamingBody(contentType: "text/csv") { body in
        for row in rows { try await body.write(row.csv) }   // waits while the client is behind
    }
}

app.get("/ticks") { () async in
    EventStream { events in
        for i in 0... { try await events.send("tick \(i)"); try await events.sleep(milliseconds: 1000) }
    }
}

app.webSocket("/chat/:room") { (ws: WebSocket, room: Path<String>) async throws in
    for try await message in ws { try await ws.send(message) }   // whole messages
}

struct Said: Codable { var text: String }
let lobby = Topic("lobby")
app.post("/say") { (said: Body<Said>) async in
    try lobby.publish(said.value.text, event: "said")   // heard by subscribers on every worker
    return HTTPStatus.noContent
}
app.get("/lobby") { (last: LastEventID) async in
    EventStream { events in try await events.forward(lobby, after: last) }   // replays what a reconnect missed
}

app.webTransport("/room/:id") { (session: WebTransportSession, id: Path<Int>) async throws in
    while let stream = try await session.acceptStream() { /* read and write */ }
}

A streamed body is chunked on HTTP/1.1 and DATA frames on HTTP/2 and HTTP/3. A write waits while more than 512 KiB is queued (writeHighWaterMark), and a throw part-way resets the stream rather than ending it cleanly. A WebSocket handler sees whole messages: the engine joins fragments, checks UTF-8, answers pings, sends keepalive pings, runs the close handshake and, with --ws-compress, permessage-deflate. Messages the handler has not read wait in a bounded queue, and past it the socket is not read, so a fast sender is slowed. A send on a socket whose connection has ended throws WebSocketError.closed, so a room holding sockets learns who has gone rather than writing to them. The same route serves WebSockets over HTTP/1.1, HTTP/2 and HTTP/3; on the last two, flow control slows just that stream. WebTransport runs over HTTP/3 on the same port and routes, with bidirectional and unidirectional streams, datagrams and close codes. The webtransport example uses all of them, with a page that runs it from a browser.

Streamed request bodies and resumable uploads

app.onStreamingBody(.put, "/files/:name", maxBodySize: 10 << 30) { request, response, body in
    while let bytes = try await body.read() { try file.write(bytes) }   // as it arrives
    response.send(status: .created)
}

import GarudaUploads

app.resumableUploads("/uploads", store: try FileUploadStore(directory: "/var/lib/app/uploads"),
                     limits: UploadLimits(maxSize: 10 << 30)) { upload in
    try moveIntoPlace(upload.path)
    try upload.remove()
    return HTTPStatus.created
}

A route registered with onStreamingBody runs as soon as the request's head arrives, and reads the body as it comes, with its own size limit. Reading is flow control: bytes the handler has not read hold back the client over HTTP/1.1, HTTP/2 and HTTP/3, so a slow disk slows only its own upload. If the client goes away part-way, the handler still reads everything that arrived and then gets RequestBodyError.incomplete.

GarudaUploads implements the IETF resumable upload protocol (draft-ietf-httpbis-resumable-upload, interop version 9). A client cut off mid-upload asks how much arrived and sends the rest, over any protocol and on any worker. response.sendInterim sends 1xx responses such as 103 Early Hints.

The request that creates an upload and the request that completes it are different requests -- often minutes apart, and on any worker -- so onCreate is given the creating one, already through whatever middleware guards the routes, and what it returns is kept on the upload for the completion handler:

app.authenticate(jwt: Claims.self)
app.resumableUploads("/photos", store: store, onCreate: { request in
    var parameter = 0
    let jwt = try JWT<Claims>.extract(from: request, parameter: &parameter)
    return ["user": jwt.claims.sub]                    // server-set metadata
}) { upload in
    try record(upload.path, owner: upload.metadata["user"])
    return HTTPStatus.created
}

The server writes that metadata and no client can reach it, which is what makes it the place for whose upload this is -- Content-Type and Content-Disposition come from the client and are not. A throw from onCreate refuses the upload before anything is written, so a request turned away leaves nothing behind to expire.

uploads is relative to wherever the routes are mounted, so a group carries them whole: inside group("/api") the uploads live at /api/uploads/:id and that is what the Location says, and inside group("/users/:user") each upload's URL sits under the user whose request created it.

The answer to the request that completes an upload is kept, Location included, and a GET of the upload's URL gives it again until maxAge: a client whose connection died as the upload finished still learns what became of it. An answer whose body is streamed is not kept, since its bytes are written after it has gone; return one whole if it should survive. The uploads example puts this together: per-user photos, owned through onCreate, checked before they are kept, and resumable under a group.

A 104 is an interim response, and an intermediary is free to drop one: a CDN or a reverse proxy in front of the server may give the client only the final 201. A client should read the upload's URL from the 104 when it arrives and from the Location of the 201 when it does not, which is what a client creating an upload with an empty body does anyway.

Testing

@Test func personIsFound() throws {
    let response = try app.test.get("/person/1")
    #expect(response.status == .ok)
    #expect(try response.json(Person.self).name == "Ada")
}

app.test runs the real engine in the test process over a socket pair, with no port: parsing, routing, middleware, handlers, timers and the response path.

Garuda and axum

The application API is modelled after axum. axum is a mature, widely used framework, so this is where Garuda stands against it, area by area.

Area	axum (Tokio)	Garuda
Route dispatch	Every handler is a future the runtime polls	A synchronous handler is a direct call on the worker thread
Async handlers	`async fn` on a work-stealing pool	Reused tasks on the worker's own executor, no allocation per request
Spreading load over cores	Idle threads steal tasks from busy ones	A worker ahead of the others leaves new connections to them; quick connections stuck behind slow requests move to a worker where they would not wait (differs)
Typed extraction	`Path`, `Query`, `Json`, `Form`, `Multipart`	`Path`, `Query`, `Body`, `Form`, `Multipart`
Custom extractors	`FromRequestParts`, `FromRequest`, `Option<T>`, `Result<T, E>`	`RequestExtractor`, `AsyncRequestExtractor`, `E?`, `Result<E, any Error>`
OpenAPI	utoipa or aide, with derive macros	`app.openAPI`, `app.swaggerUI`; schemas read from `Decodable` types
State	`State<T>`, one `Arc` shared by every thread	`State<T>`, built in each worker process (differs)
Request-scoped values	`Extension<T>`	`request[context:]`, `Context<Key>`
Errors as responses	`IntoResponse`	`ResponseError`, `HTTPError`
Protocols	HTTP/1.1 and HTTP/2 through hyper	HTTP/1.1, HTTP/2 and HTTP/3
TLS	rustls or OpenSSL via `axum-server`; ACME from another crate	Built in, with ACME
Nesting and 405	`nest`, `merge`, `fallback`, 405 with `Allow`	`group`, `Router` with `nest` and `merge`, `fallback` per scope, 405 with `Allow`
Middleware	Tower layers that wrap the handler	`use` before the handler; `onSend` on the response (differs)
Ready-made middleware	tower-http, tower-sessions, axum-extra	Server flags for compression, rate limits, request IDs, trace context, access log; `app.deadline`, `app.cors`, `app.authenticate`, `JWT<Claims>`, `request.log`, `app.onResponse`, `app.maxBodySize`, `app.concurrencyLimit`, cookies, `app.sessions`, `app.csrfProtection`, `app.securityHeaders`, `app.trailingSlash`, `app.requestDecompression`, `app.allowedHosts`, `app.addressFilter`
Streaming responses	`Body::from_stream`	`response.stream()`, `StreamingBody`, with backpressure
Server-sent events	`Sse`, with keep-alive	`EventStream`, with keep-alive comments and `Last-Event-ID`
Broadcast	`tokio::sync::broadcast`, within one process	`Topic`, across worker processes, to event streams, WebSockets and long polls, with replay
Streaming request bodies	`Body::into_data_stream`	`onStreamingBody`, with a limit per route and flow control back to the client
Resumable uploads	None built in; tus through other crates	`GarudaUploads`: the IETF resumable upload protocol
Interim responses	None: hyper sends only 100 Continue	`response.sendInterim`, such as 103 Early Hints
WebSockets	`WebSocketUpgrade`	`app.webSocket`, whole messages, pings and permessage-deflate by the engine (over HTTP/1.1, HTTP/2 and HTTP/3)
WebTransport	None in hyper	`app.webTransport`
HTTP client	reqwest	`request.client`, HTTP/1.1 and HTTP/2, redirects by policy, decompression, streamed responses and server-sent events, a whole-exchange budget
PostgreSQL	sqlx, tokio-postgres	Native driver on the poller
Redis	redis-rs, fred	Native driver on the poller: RESP3 and RESP2, TLS, ACL, pipelines, transactions, pub/sub
SQLite	sqlx, rusqlite	The system's libsqlite3 on the blocking pool: a writer and readers per worker, WAL, migrations
Blocking work	`spawn_blocking`	`blocking { … }` on a bounded pool of threads per worker
Testing	`tower::ServiceExt::oneshot`	`app.test`, the real engine

Every row is implemented and tested.

For performance, BENCHMARKS.md has the method and every run, including hello-world comparisons with axum that measure what the server adds to a request.

Where Garuda differs, and why

Middleware does not wrap the handler

A Tower layer awaits the handler and gets its response back as a value. A Garuda handler writes its answer straight into the connection's buffer, so there is no response value to hand back without building and copying one on every request. Middleware runs before the handler, and response.onSend lets it see and change the response just before the head is written. The hook runs for every way a request is answered: the handler, a thrown error, a middleware's refusal and a deadline's 504. Hooks run last-added first, so they nest the way layers do.

What that rules out: retrying the handler from middleware, or holding a scope open around its run. Retry inside the handler or around pool.transaction, and use app.deadline for timeouts. Hooks do not run for static files, cache hits, or the 404 before any route matches.

Middleware covers its whole scope

An axum layer applies only to routes added before it. Garuda's use covers every route in its group or application wherever the call is, so moving a line cannot leave a route unguarded. A route that must skip a middleware goes outside the group.

One process per worker

A worker is a process with one thread. Nothing is shared, so nothing is locked, a crash takes only that worker's connections, and SIGHUP replaces workers one at a time. The cost: in-memory state is per worker, and a pool of 8 database connections is 8 per worker. Keep shared state in a database, and size pools as the total divided by --workers.

A crash staying in one worker matters more in Swift than in Rust: a force-unwrapped nil or an index out of range ends a Swift process on the spot, where Tokio catches a Rust panic in the task that raised it.

Processes cannot steal work from each other the way Tokio's threads do. Instead a worker ahead of the others leaves new connections to them, and a worker where quick requests would wait behind slow ones hands idle HTTP/1 keep-alive connections to one where they would not (--balance). When every worker holds a slow client, the slow ones are gathered onto fewer workers to free the rest. With 8 slow connections among 64 on 8 workers, starting a second in, the quick requests' p99 was 2.4–2.8 ms and axum's 3.0–3.1 ms, where the kernel's hash alone let it reach 7.6 ms. HTTPS connections do not move: the record layer is BoringSSL and encrypts in the process, so the session cannot travel with the descriptor. HTTP/2 connections, WebSockets and requests in progress stay on the worker that has them.

A handler that computes without awaiting holds its worker

A worker is one thread, and staying on it is what removes the scheduling hop. A loop that never awaits holds the worker until it ends. A deadline bounds waiting, not computing. Run more workers than busy cores, and hand a call that blocks or computes for long to try await blocking { … }, which runs it on the worker's blocking pool while the worker serves other requests. Waiting on an external program is such a call.

On macOS 15, `Task.yield()` leaves the worker

Swift 6.1's concurrency runtime, the one macOS 15 has, sends a task that calls Task.yield() to the global executor whatever executor it prefers. The handler still resumes on its worker, but only once a thread of the global pool is free to hand it back. Linux, and the runtime in newer macOS, keep it on the worker. A handler that wants to let others run is better served by an await on the engine, such as response.sleep(milliseconds:).

No Foundation

Garuda brings its own JSON coder, UUID and Timestamp. If your code imports Foundation too, write Garuda.UUID where both are in scope.

PostgreSQL prepares statements on its own

Every connection keeps up to 256 statements prepared, with no opt-in per query. Behind PgBouncer in transaction pooling mode, set statementCacheCapacity = 0.

The server

These work without any handler code, set by flags:

HTTP/1.1 with a parser strict where it prevents request smuggling, HTTP/2 over TLS and cleartext, and HTTP/3 over QUIC (--http3). QUIC, TLS 1.3 key schedule and QPACK are Swift, over OpenSSL's crypto primitives.
TLS on a vendored BoringSSL, with several certificates chosen by SNI on both TCP and QUIC. OpenSSL is still linked for cryptography, ACME and QUIC. There is no kernel TLS, so --ktls is accepted and ignored.
ACME certificates (--acme-domain), obtained and renewed with tls-alpn-01 on the port already served.
Static files (--static-dir) with sendfile, ETag and byte ranges, pre-compressed copies (--compress-static), and directories answered by their index.html (--static-index) or listed (--static-listing).
Rate limiting (--rate-limit) counted across workers.
HTTPS redirects (--redirect-http), HSTS, request IDs, W3C trace context, an access log, Prometheus metrics and a health check.
Graceful shutdown with --drain-delay, and zero-downtime reload on SIGHUP or when the executable is rebuilt (--reload).
Unix sockets, multiple workers, and trusted proxy headers (--forwarded-allow-ips).
Compression of handler responses (--compress) and a response cache shared by the workers (--cache-size).

garuda --help lists every flag, and CONFIG.md explains them.

Signals

Signal	Effect
`SIGTERM`	Stop accepting, finish in-flight requests within `--graceful-timeout`. With `--drain-delay`, keep serving first while the health check answers 503.
`SIGINT`, `SIGQUIT`	Shut down without the drain delay.
`SIGHUP`	Replace every worker one at a time, rereading certificates, without refusing a connection.

Tests

swift test                                   # 1130 unit tests, and the fuzz corpus
(cd Examples && swift test)                  # 41  the examples, through app.test
bash scripts/compile-fail-test.sh            # 18  handler code that must not compile

The end-to-end suites run against a release build. Each takes a binary path as its first argument. Most use .build/release/garuda; handler-test.py, websocket-test.py, webtransport-test.py, upload-test.py and broadcast-test.py use .build/release/garuda-conformance, whose routes exist only for the tests.

bash scripts/integration-test.sh             # 36  HTTP/1.1 framing and smuggling defences
bash scripts/static-test.sh                  # 105 --static-dir
bash scripts/compress-test.sh                # 76  --compress, --compress-static
bash scripts/cache-test.sh                   # 85  --cache-size
bash scripts/ratelimit-test.sh               # 18  --rate-limit
bash scripts/redirect-test.sh                # 22  --redirect-http, --hsts
bash scripts/sni-test.sh                     # 11  certificates by SNI
bash scripts/resumption-test.sh              #  7  session tickets resume, TLS 1.3 and 1.2
bash scripts/acme-test.sh                    # 12  --acme-domain, needs Pebble
bash scripts/request-id-test.sh              # 12  --request-id
bash scripts/trace-context-test.sh           # 17  --trace-context
bash scripts/drain-test.sh                   # 14  --drain-delay
bash scripts/reload-test.sh                  #  7  SIGHUP under load
python3 scripts/feature-test.py              # 62  shutdown, supervision, unix sockets, slow clients
python3 scripts/http2-test.py                # 62  against the h2 library
python3 scripts/http3-test.py                # 76  against aioquic
python3 scripts/router-streams-test.py       # 41  routes over HTTP/2 and HTTP/3
python3 scripts/handler-test.py              # 143 the handler API over all three protocols
python3 scripts/websocket-test.py            # 104 handshake, framing violations, closing, pings, deflate
python3 scripts/websocket-streams-test.py    # 94  WebSocket over HTTP/2 and HTTP/3
python3 scripts/webtransport-test.py         # 46  sessions, streams, datagrams
python3 scripts/upload-test.py               # 35  streamed request bodies, 1xx, resumable uploads
python3 scripts/broadcast-test.py            # 36  topics across workers, Last-Event-ID, keep-alive

The shell suites need curl and openssl. The Python suites are clients only, using h2 and aioquic, which share no code with the server. Two unit tests want a second loopback address, which Linux has and macOS has to be asked for (sudo ifconfig lo0 alias 127.0.0.2 up); without it they say so and skip, rather than failing as though something were wrong. Every parser that reads network bytes is fuzzed with swift run -c release pgfuzz (fuzz/README.md). CI (.github/workflows/ci.yml) runs on every push and pull request: the build and unit tests on Ubuntu 24.04 and macOS 15, the handler code that must not compile, the connectors against a real PostgreSQL and Redis, and the end-to-end suites. The protocol suites and a sanitizer fuzz run on every push to main, nightly and on demand, but not on a pull request: they are slow and want a QUIC stack.

Status

Garuda is past 1.0, so a breaking change to the public API needs a major version. 1.1.0 made one exception, one word long: CompletedUpload.digest() must now be awaited, and RELEASE.md says why. COMPATIBILITY.md says what that covers and how much notice a change gets. Pin with from: "1.1.0".

Known limits

A handler waiting on something other than the engine -- its own continuation, say -- is not unwound when its request is cancelled. It resumes to find response.isCancelled set, and anything it sends is dropped. Wrap the wait in response.cancellable { … } and it is given up on when the request ends. What that cannot do is stop work which ignores cancellation; the worker counts such work and reports it on the health check instead.

Not supported

Reads from Redis replicas: every command goes to the master, or to the node that owns the slot. CONNECTORS.md has the rest of the driver's limits.
multipart/byteranges: a request for several ranges at once is answered with the whole file.
QUIC session resumption and 0-RTT.
TLS over TCP in Swift: the record layer is BoringSSL.
Kernel TLS: BoringSSL has none, so --ktls is accepted and ignored.
Windows, except through WSL 2.

Documentation

File	What it covers
HANDLER-API.md	The handler API's design, decisions and roadmap
INSTALLATION.md	Building, dependencies, certificates, deployment
CONFIG.md	Every command-line flag
MIDDLEWARE.md	How middleware runs, every piece Garuda ships, and writing your own
EXAMPLES.md	The runnable applications, and recipes: the per-worker model, settings, common tasks
ARCHITECTURE.md	How the engine is built
TRANSPORT.md	What each protocol implementation does
Examples/README.md	Eight runnable applications and how they are laid out
Examples/STARTER.md	The starter application: layout, configuration, migrations, deployment
CONNECTORS.md	The HTTP client and database drivers: limits and future work
BENCHMARKS.md	Benchmark method and results
COMPATIBILITY.md	What an application may depend on, and what a release may change
DEPLOYMENT.md	Publishing: the Swift Package Index listing, and the release checklist
RELEASE.md	Changes

Navigation Menu

Repository files navigation

Garuda

Features

Quick start

Writing handlers

Routes and typed handlers

The raw layer

Async handlers, deadlines and the HTTP client

State, groups and middleware

Tracing

OpenAPI

PostgreSQL

Redis

SQLite

Streaming, server-sent events, WebSockets and WebTransport

Streamed request bodies and resumable uploads

Testing

Garuda and axum

Where Garuda differs, and why

Middleware does not wrap the handler

Middleware covers its whole scope

One process per worker

A handler that computes without awaiting holds its worker

On macOS 15, `Task.yield()` leaves the worker

No Foundation

PostgreSQL prepares statements on its own

The server

Signals

Tests

Status

Known limits

Not supported

Documentation

About

Releases

Packages

Contributors

Languages

Name		Name	Last commit message	Last commit date
.github		.github
Examples		Examples
Sources		Sources
Tests		Tests
assets		assets
benchmarks		benchmarks
fuzz		fuzz
scripts		scripts
.dockerignore		.dockerignore
.gitattributes		.gitattributes
.gitignore		.gitignore
.spi.yml		.spi.yml
ARCHITECTURE.md		ARCHITECTURE.md
BENCHMARKS.md		BENCHMARKS.md
COMPATIBILITY.md		COMPATIBILITY.md
CONFIG.md		CONFIG.md
CONNECTORS.md		CONNECTORS.md
DEPLOYMENT.md		DEPLOYMENT.md
EXAMPLES.md		EXAMPLES.md
HANDLER-API.md		HANDLER-API.md
INSTALLATION.md		INSTALLATION.md
LICENSE		LICENSE
MIDDLEWARE.md		MIDDLEWARE.md
Package.swift		Package.swift
README.md		README.md
RELEASE.md		RELEASE.md
TRANSPORT.md		TRANSPORT.md

Latest commit

History

Folders and files

Repository files navigation

Garuda

Features

Quick start

Writing handlers

Routes and typed handlers

The raw layer

Async handlers, deadlines and the HTTP client

State, groups and middleware

Tracing

OpenAPI

PostgreSQL

Redis

SQLite

Streaming, server-sent events, WebSockets and WebTransport

Streamed request bodies and resumable uploads

Testing

Garuda and axum

Where Garuda differs, and why

Middleware does not wrap the handler

Middleware covers its whole scope

One process per worker

A handler that computes without awaiting holds its worker

On macOS 15, Task.yield() leaves the worker

No Foundation

PostgreSQL prepares statements on its own

The server

Signals

Tests

Status

Known limits

Not supported

Documentation

About

Topics

Resources

Stars

Watchers

Forks

Releases

Packages

Contributors

Languages

On macOS 15, `Task.yield()` leaves the worker
