Consume HIG 7c67a07 packages in Chart docs

[joeblau]

Part of bloxwap/hig#34 (Chart row). Builds on #52, which copied a HIG plain-CSS snapshot from bloxwap/hig@1a776b9.

Chart docs now install HIG as packages instead of keeping copies. The packed @bloxwap/hig-tokens, @bloxwap/hig-contracts and @bloxwap/hig-react candidate tarballs from bloxwap/hig@7c67a07 sit under vendor/bloxwap-hig/ as file: dependencies, pinned by SHA-256.

Replaced

• Tokens: the shell imports @bloxwap/hig-tokens/css and @bloxwap/hig-react/css and uses --hig-* roles directly. The copied token CSS and manifest are gone, along with the alias adapter (--card, --bloxwap-green, --space-*). Radius/type/motion/density roles are generated from the package manifest, because the CSS distribution doesn't emit them yet.
• Fonts: the social-card renderer reads Bloxwap Sans faces from @bloxwap/hig-tokens/fonts instead of two copied TTFs. Web fonts stay on @bloxwap/[email protected].
• Controls: the hand-written .btn family is replaced by HIG Button/.hig-button. Install tabs use HIG Tabs around the InstallCommand recipe; the code-window copy uses HIG IconButton busy.
• Callouts and states: MDX <Callout> renders HIG Callout. Search failure shows HIG Alert, an empty result shows EmptyState, and the playground loading status uses Spinner.
• Demo: it gets @bloxwap/hig-tokens/css unmodified and a chart theme from the typed manifest. SDK engine, controls, base path /chart, metadata, deep links, API examples and capability wording are unchanged.
• Guard: npm run lint now checks tarball hashes and installed versions, and rejects copied palettes, .btn primitives and font binaries in docs source.

Measured against c4dff80 (same Node 24 / Next 16.3.6 / /chart export; size-report.json)

	Before	After	Δ
Emitted CSS	145,759 B	152,712 B	+6,953
Emitted JS	2,172,631 B	2,188,721 B	+16,090
Emitted fonts	14,205,712 B	14,205,712 B	0
Export total / files	29,653,520 / 826	29,686,679 / 827	+33,159 / +1
Hand-maintained docs CSS	2 files / 460 lines	1 / 406	−54 lines
Docs source files removed		9 files, 904,638 B	tokens, manifest, adapter, TTFs + notices
Docs direct deps / lockfile pkgs	16 / 400	19 / 403	+3 @bloxwap/hig-*, no transitive additions

The emitted output grows a little: HIG's component CSS and OKLCH token block now ship, and the HIG React modules replace the local primitives. In return, nine copied files and the alias layer are gone, and the shell updates with the package. The 4.2 MB tokens tarball is now in the repository; most of it is native TTFs the docs don't use.

Validation (macOS, Node 24.10.0, npm 11.6.1, Chrome 155 via Playwright; validation.txt, browser.json)

• npm ci: passes with plain npm ci.
• npm run docs:build with NEXT_PUBLIC_BASE_PATH=/chart: 30 HTML pages, 1,530 local links/assets and 25 social cards verified.
• npm run docs:check, npm run lint and npm run typecheck pass.
• npm run coverage: 1,869/1,869 passed, 100% coverage.
• npm run docs:test (browser):
  • install tabs respond to Arrow/Home/End keys;
  • repeat copy activations join one clipboard write, success is announced, and denial shows recovery text;
  • HIG palette, fonts and reduced motion apply, with no legacy aliases left;
  • the playground demo runs offline: 500 bars, 0 duplicates, WebGL2, settings dialog closes on Escape, wheel zoom works;
  • search shows results, opens on Ctrl/Cmd+K, and shows the HIG empty and failure states;
  • the callout is not a live region, and the keyboard focus ring is visible;
  • pages hold up in RTL and at 200% text;
  • at 390px with touch emulation, the copy target is at least 48px and the mobile sidebar navigates.

Screenshots (Chrome via Playwright; external requests blocked so both demos use the offline synthetic market):

	Before	After

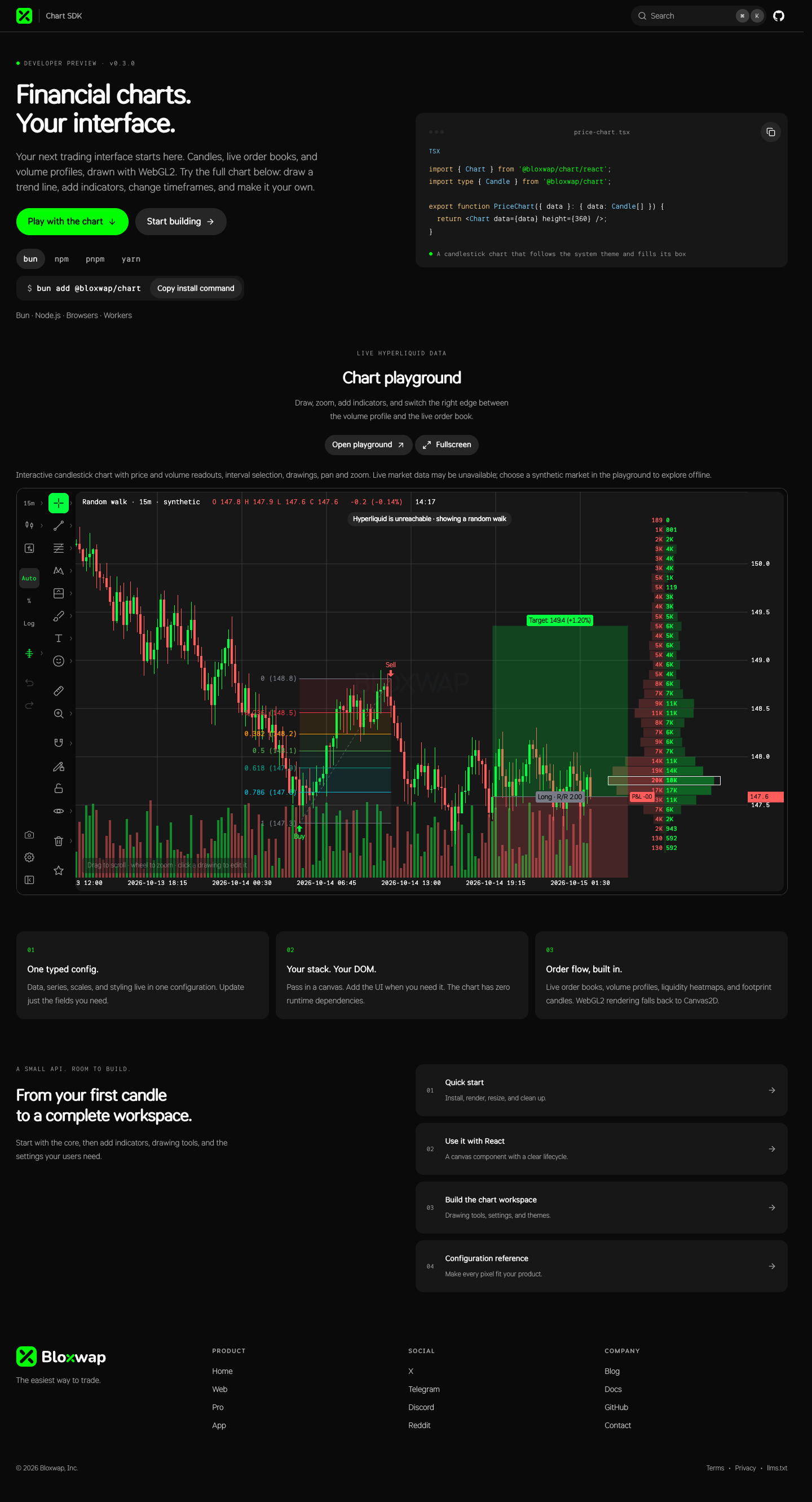

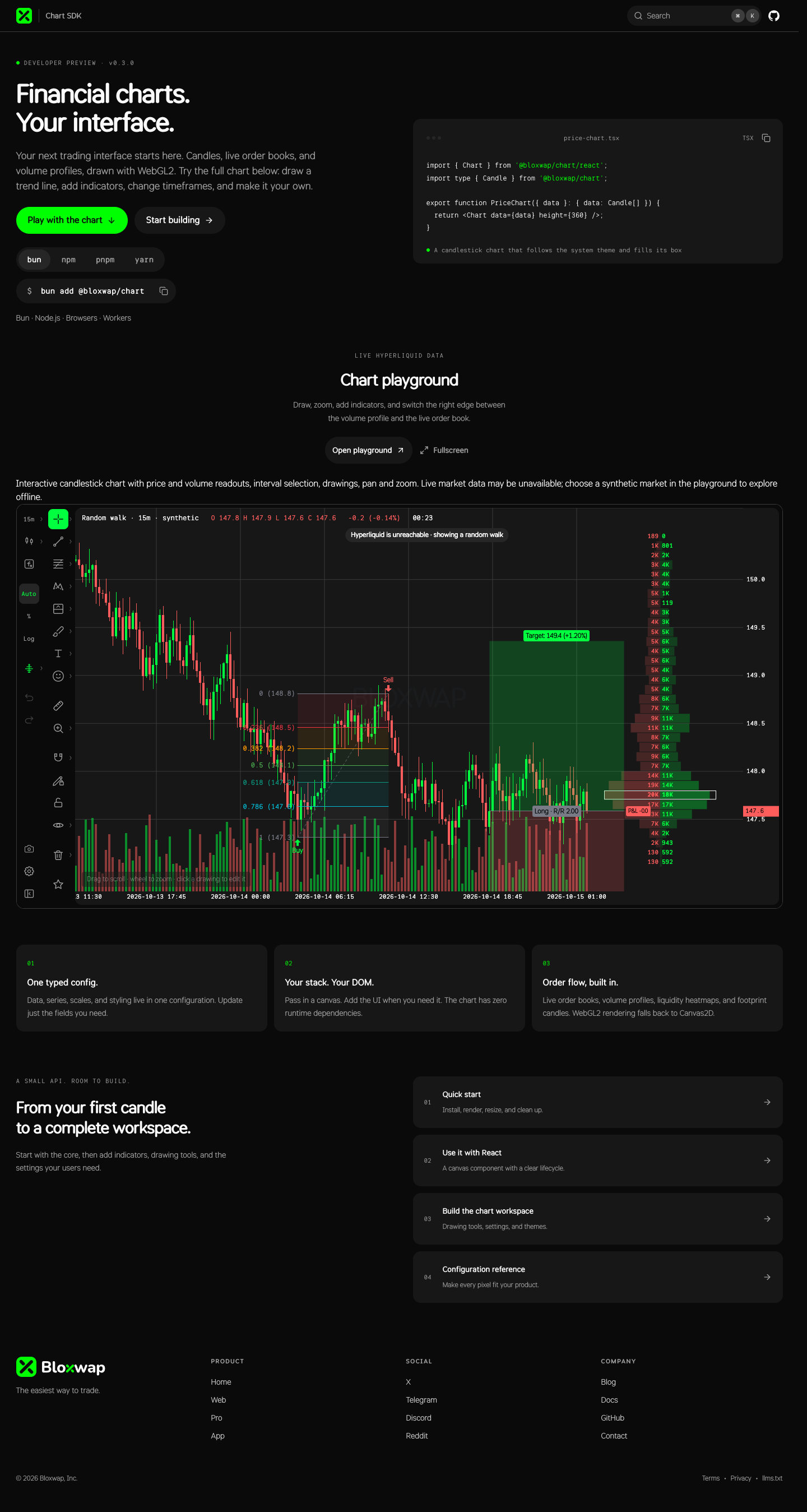

Home, desktop

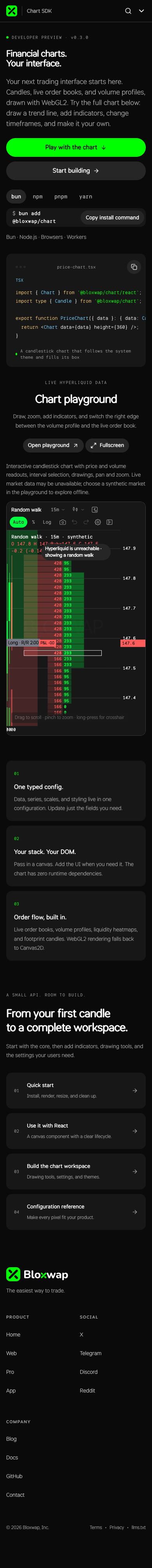

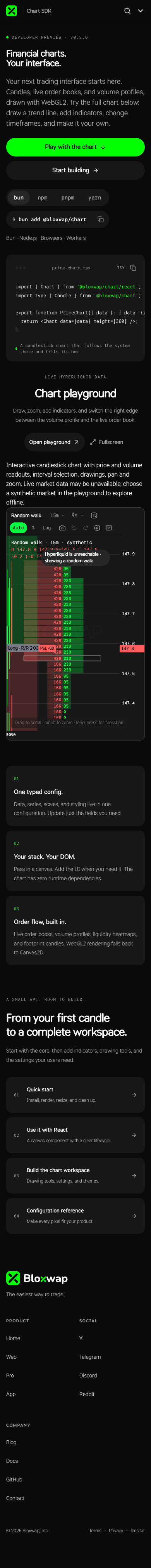

Home, 390px

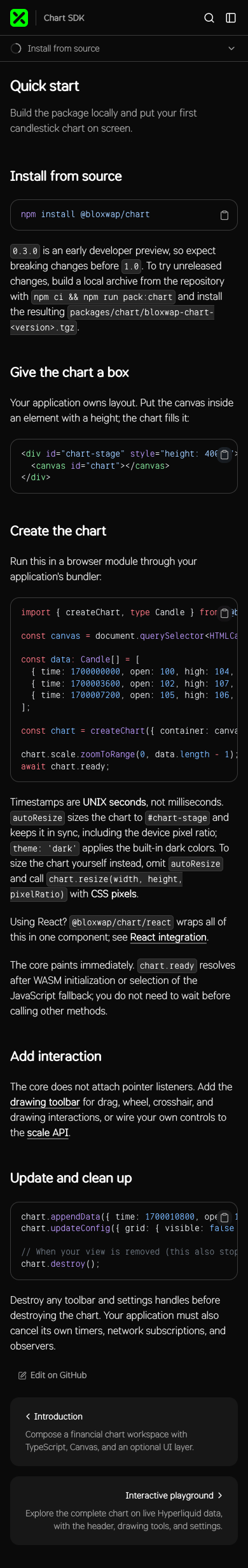

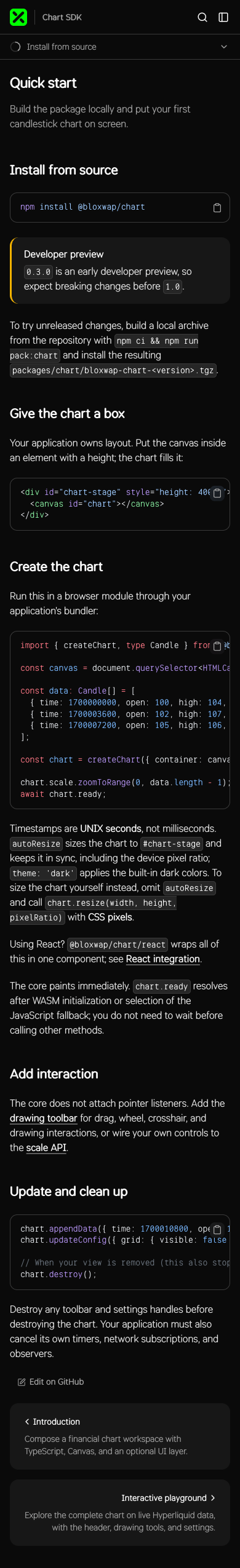

Quick start (callout), 390px

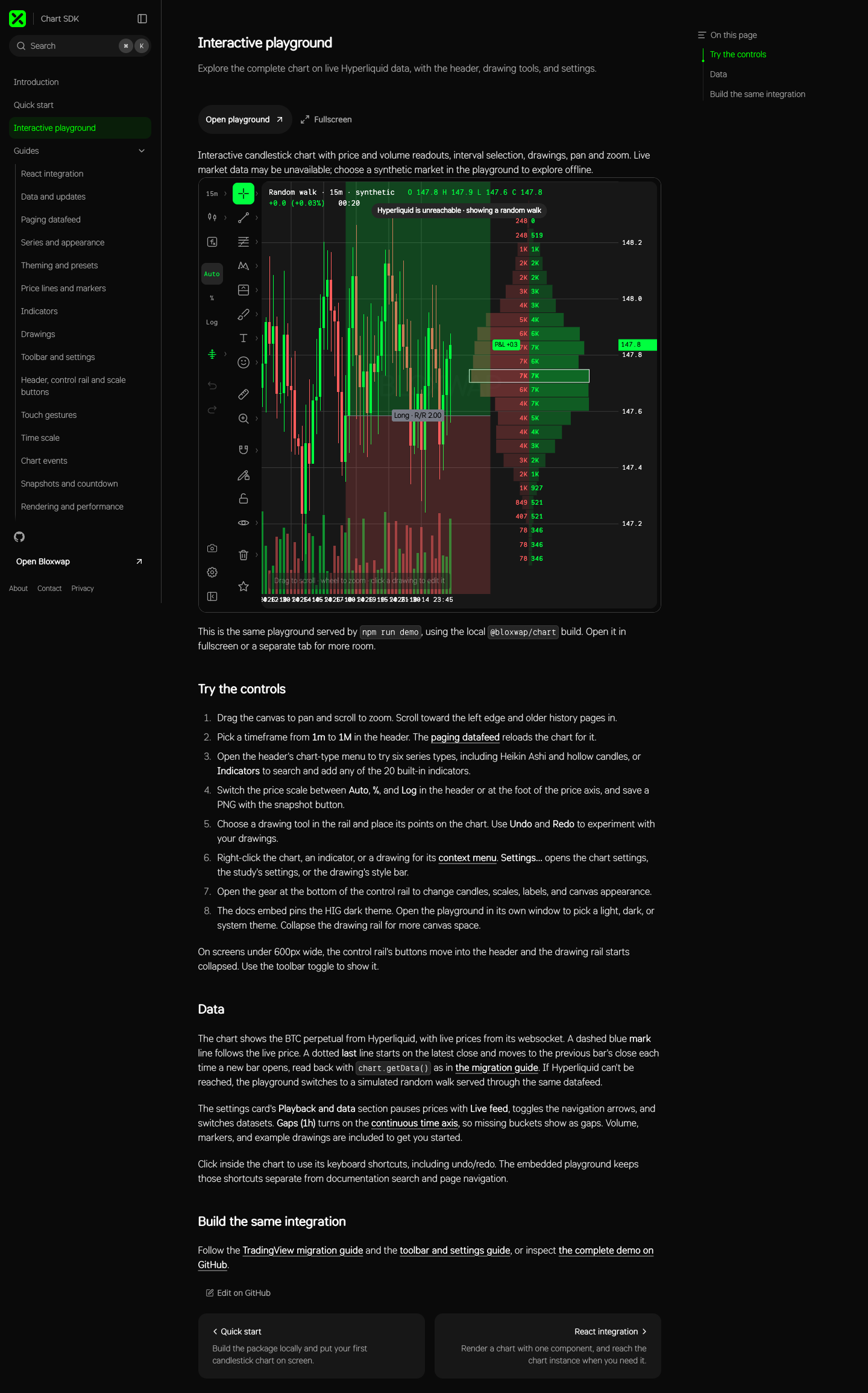

Playground demo, desktop

All 16 captures (configuration reference included) are in docs/hig-adoption/hig-7c67a07.

Exceptions (review 2026-11-13, details in docs/hig-adoption/README.md and vendor/bloxwap-hig/README.md)

• .npmrc sets legacy-peer-deps=true. HIG React's optional exact Radix peers (dialog/popover 1.1.15) clash with Fumadocs' 1.1.23. Without the flag, npm nests a second Radix tree and drops the packages/chart workspace link in favor of the registry build.
• @bloxwap/hig-react/recipes imports the overlay entry, which needs the dropdown-menu/tooltip Radix peers. To avoid adding them, the InstallCommand/CodeWindow recipe markup is built from the HIG button/surface primitives. Suggested HIG follow-up: split that entry.
• The decorative purple/pink/yellow colors in the OG spectrum are kept.

Not covered: physical touch or mobile chart gestures, iOS/Android hardware, VoiceOver/TalkBack and wide-gamut review were not done. No iOS Simulator or Android emulator run was needed for this web-only docs change. Touch emulation is not device evidence. The other four SDK docs rows and the canonical HIG matrix update stay upstream, so this PR does not close hig#34.

No npm publish, tags, releases or manual deploys. To roll back, revert the three commits together.
