GPU Fluid Simulation

A highly optimized, particle-based GPU fluid simulation written in Rust and Vulkan, featuring an octree-accelerated neighbor search and Slang compute/mesh shaders.

---

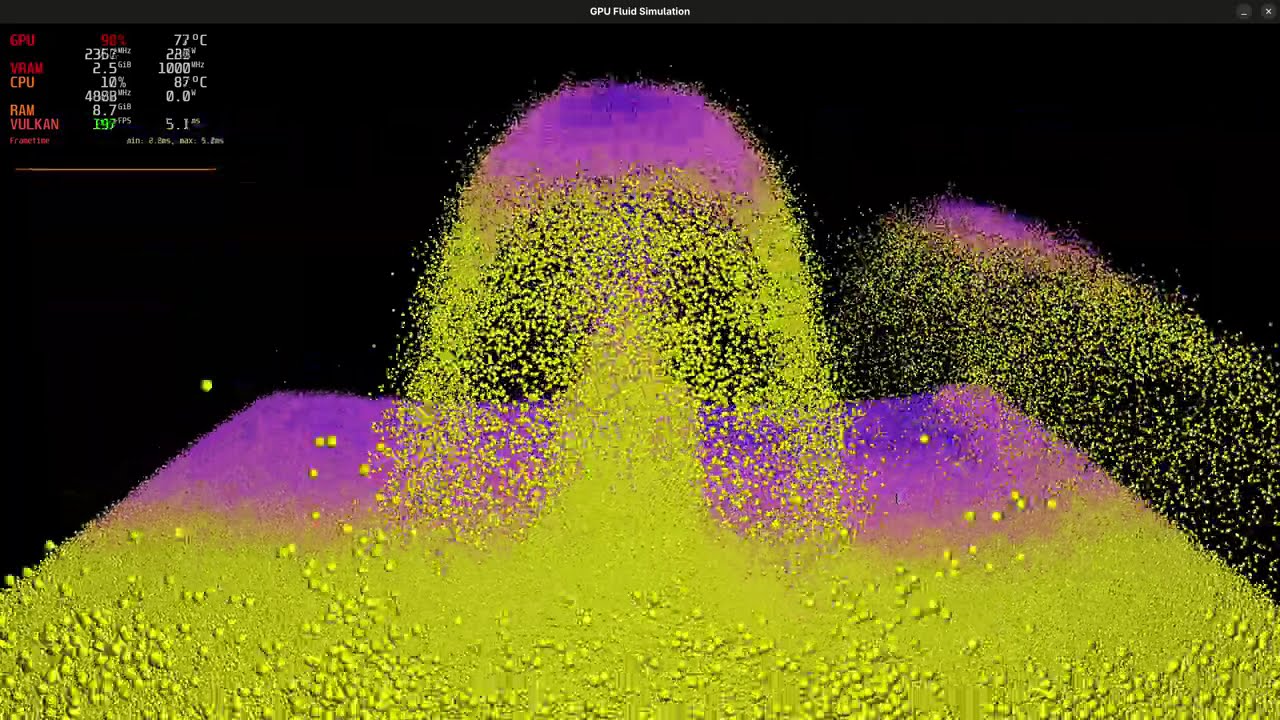

Demo

💡 Click the image above to watch the simulation in action on YouTube.

---

Features

• Massive Particle Counts: Simulates over 1,000,000 particles in real-time.
• Octree Neighbor Search: Fast GPU-based dynamic spatial partitioning.
• Slang Shader Pipeline: Shaders are compiled and embedded directly during the build.

---

Code Organization

flowchart TD
    App[App: window and events] --> Session[Session: input and camera]
    Session --> Backend[GpuBackend]
    Vulkan[VulkanBackend] -. implements .-> Backend
    Vulkan --> Physics[ParticlePhysics: simulation]
    Vulkan --> Renderer[VulkanWorldRenderer: rendering]
    Vulkan --> Resources[VulkanWorldResources: GPU particle data]
    Physics -->|updates| Resources
    Renderer -->|reads| Resources

Loading

---

Prerequisites

Ensure you have the following installed and supported on your system:

Software

• Rust Toolchain: Latest stable Rust (rustup default stable).
• LLVM
• LunarG Vulkan SDK

Hardware Requirements

• A modern GPU supporting Vulkan 1.3+.
• Support for Mesh Shaders (VK_EXT_mesh_shader).
• Support for Subgroup / Wave operations (subgroup arithmetic and extended types).

---

Getting Started

Slang shaders are compiled automatically during the Cargo build and embedded into the final executable. Slang is automatically fetched if not detected locally.

Run

Run the simulation with the default configuration (1,000,000 particles, colliding-blocks preset):

cargo run --release

Note: The simulation launches in a paused state. Press Space to start or pause.

Command-line Options

You can configure particle count and initial presets via CLI flags:

cargo run --release -- --num-particles 250000 --preset double-dam-break

Display all available flags and options:

cargo run --release -- --help

Available Presets:

• colliding-blocks (Default)
• double-dam-break
• rotating-block

---

Controls

Input	Action
Space	Start / Pause simulation
Left Click + Drag	Rotate camera
Right Click + Drag	Pan / Move camera
Mouse Wheel	Zoom in / out

---

Performance

Metric	Result
Particle Count	1,000,000 particles
Frame Rate	~180 FPS

Benchmark System Specs:

• GPU: AMD Radeon RX 6800 XT
• CPU: AMD Ryzen 5 7600
• OS: Linux

---

Testing & Benchmarks

Run unit and integration tests:

cargo test

Run simulation benchmarks:

cargo bench

---

References

• Divergence-free SPH (DFSPH) — Jan Bender, Dan Koschier
• Cornerstone: Octree Construction Algorithms for Scalable Particle Simulations — J. Keller et al.
• Single-pass Parallel Prefix Scan with Decoupled Look-back — Duane Merrill, Michael Garland
