A high performance rasteriser for digital image correlation uncertainty quantification.

Riley is a high performance software rasteriser written in Zig for digital image correlation uncertainty quantification (DIC UQ). It synthesises deformed speckle images from finite element simulations, with higher order surface elements (tri3, tri6, quad4, quad8, and quad9), realistic camera models and distortion as well as texture/nodal/analytic shaders, and mixed scenes.

Riley's Zig core uses comptime specialisation and SIMD with @Vector to keep its rendering path fast and direct. It also uses hierarchical offline parallelisation allowing scaling over cameras and timesteps to be rendered. Riley is available as a Zig library and executable, a C compatible ABI, and the riley-raster Python package which provides python bindings to the compiled Zig library.

Quick start: Zig

Riley uses Zig 0.16.0. Clone the repository, then build and run the smallest demo:

zig build demo0-quickstart -Doptimize=ReleaseFast

Renders are written to out/. Run the combined test suite with:

zig build test-verif-basic

Quick start: Python

Install the published package:

python -m pip install riley-raster
python -m riley demo0_quickstart

Python renders are written below out_riley_py/. For development from a checkout, install it in editable mode:

python -m pip install -e .

Verification and regression tests

The Zig test suites are intentionally separated by purpose. The focused verification suite requires the production f64 and SIMD configuration; run zig build --help for the complete target list and configuration options.

Command	Purpose
zig build test-verif-basic	Fast combination of focused analytic verification and basic regression tests.
zig build test-verif	Analytic verification of the solver, silhouettes, depth buffer, and camera distortion.
zig build test-basic	Basic regression suite.
zig build test-full -Doptimize=ReleaseSafe	Full regression suite.

Run the packaged Python test suite with:

python -m pytest --pyargs riley.pytests -s

or:

python -m riley test

The python tests include parity analysis between the Zig demo output when the repository assets and Zig compiler are available; they skip when installed from a clean PyPI package.

Examples

Riley provides a series of capability demos in Zig and Python. For example, render the rabbits demo with:

zig build demo2a-rabbits-mono -Doptimize=ReleaseFast

The equivalent Python demo is:

python -m riley demo2a_rabbits_mono

Browse the complete Zig demo directory or Python demo directory. The image links below are absolute GitHub URLs so they render both on GitHub and on PyPI.

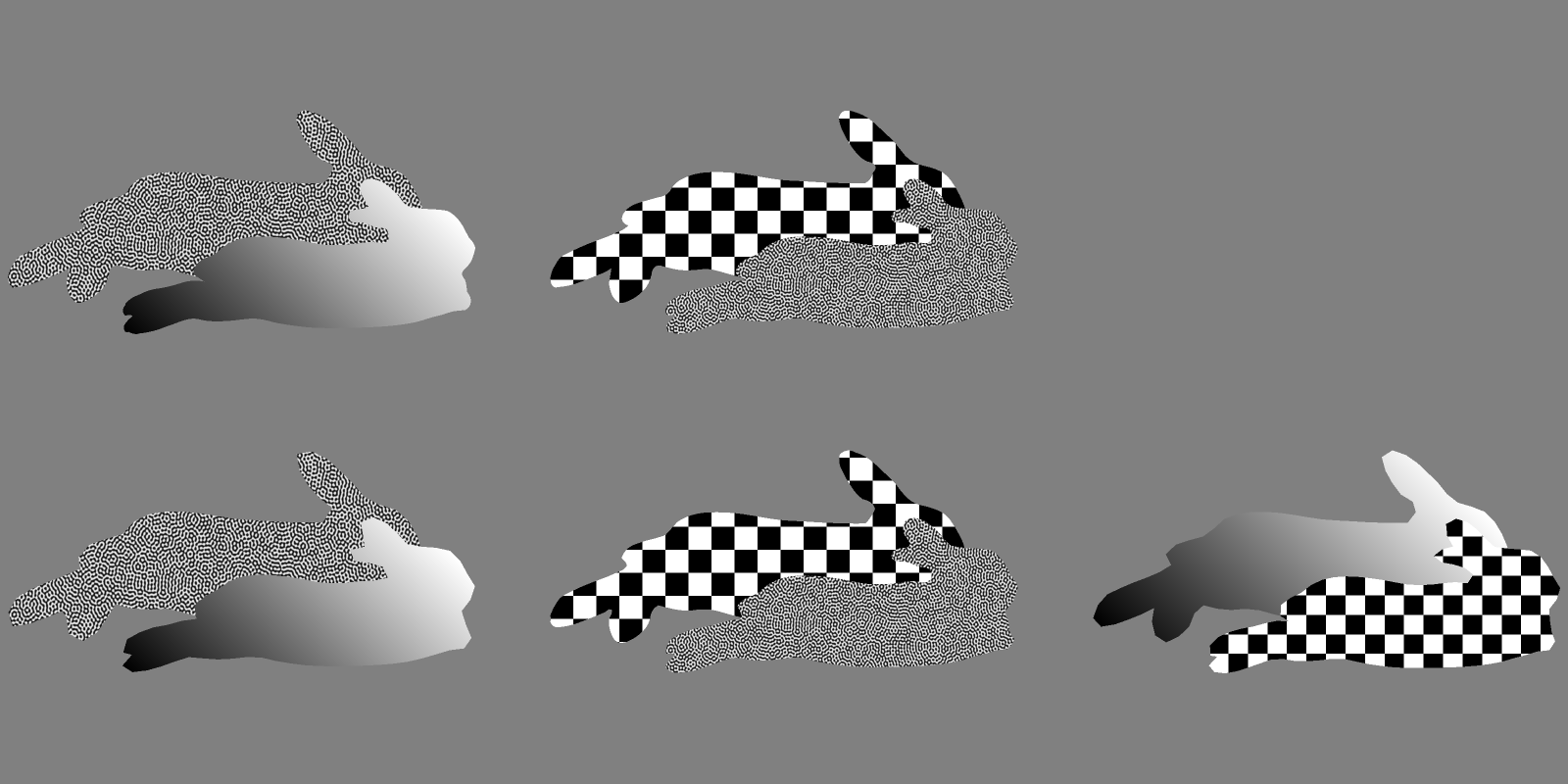

Rabbits demo

The rabbit scene combines all supported element types and the principal shader families in a single render.

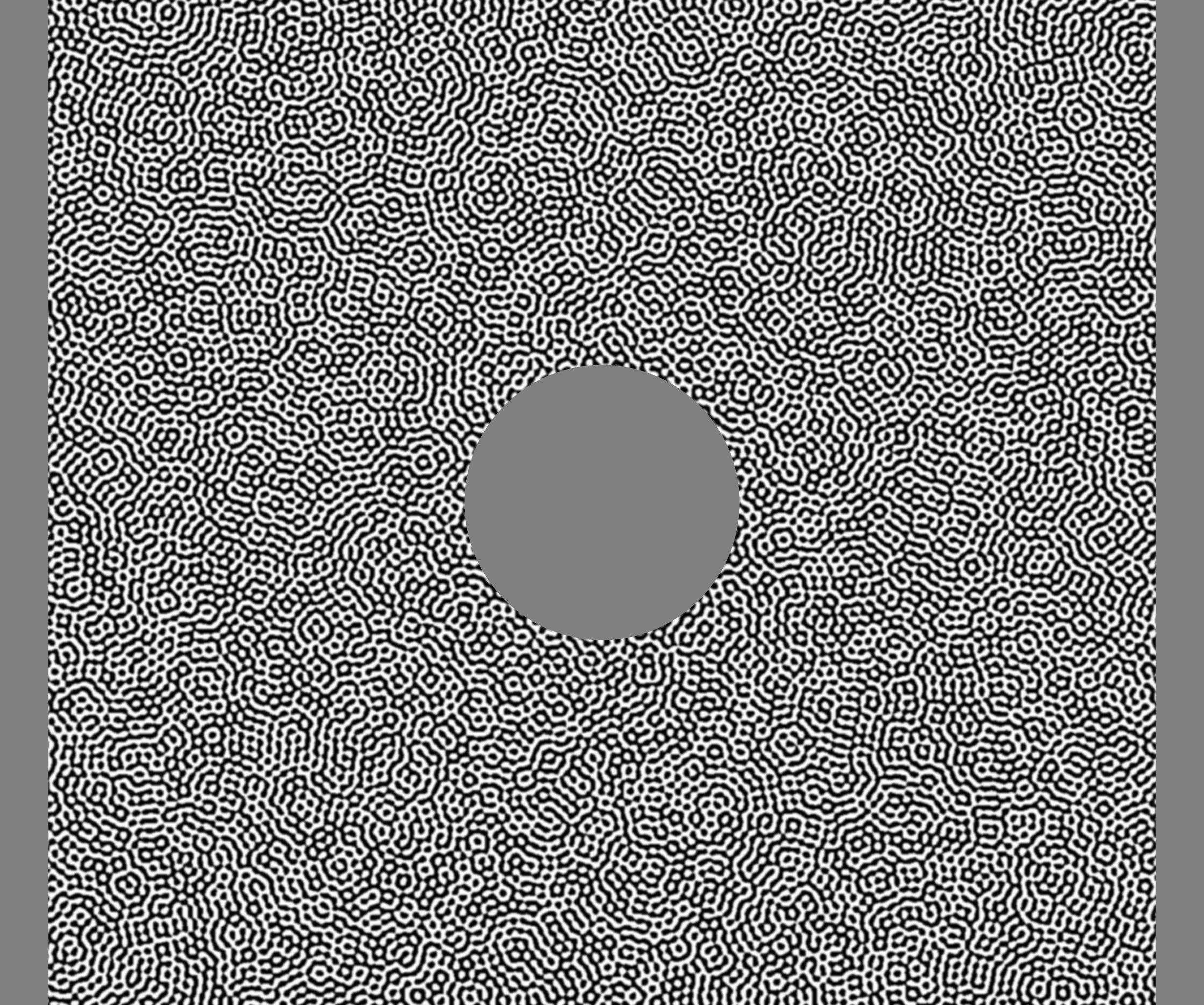

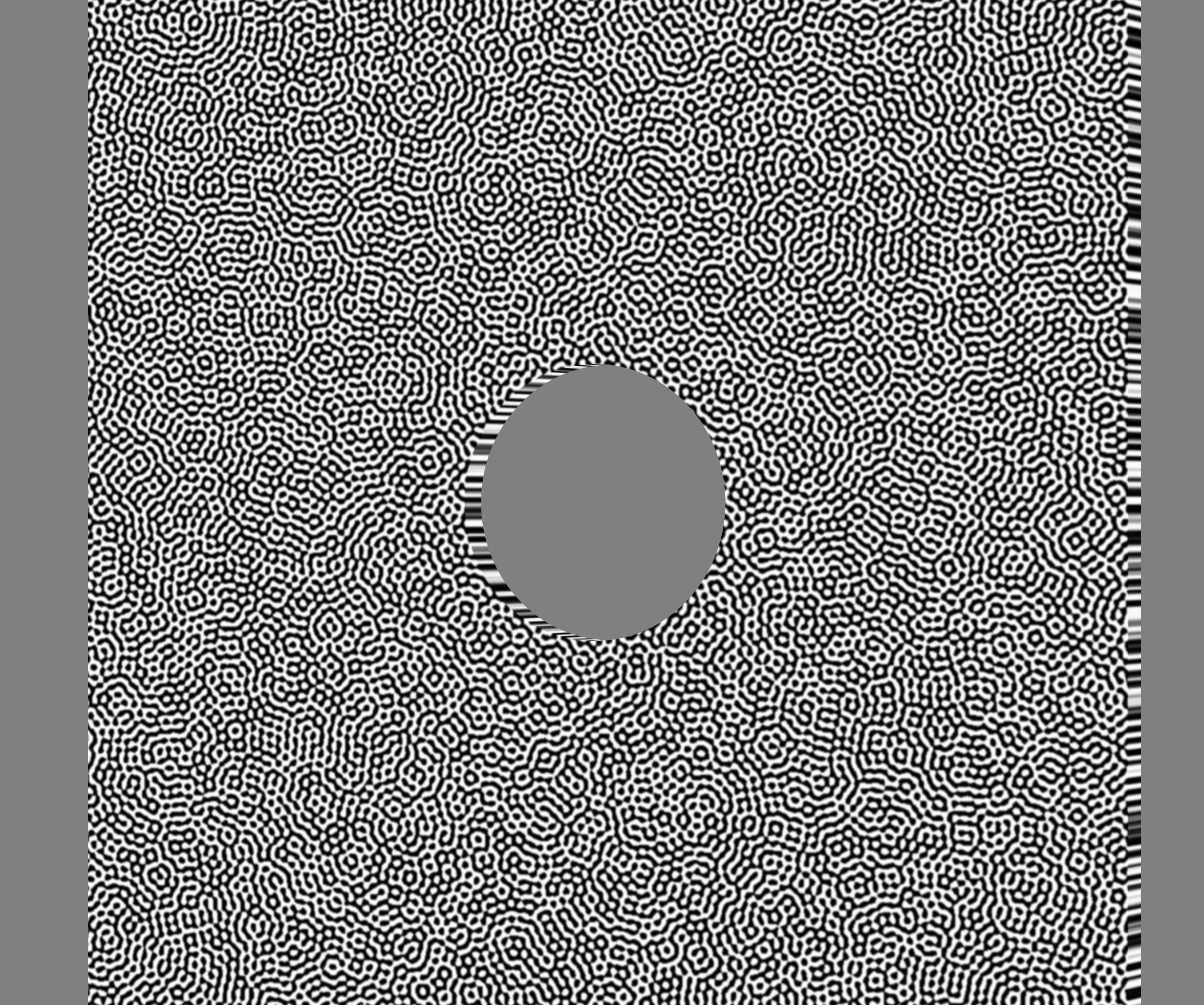

Digital image correlation UQ demo

A representative stereo DIC UQ render of a plate with a hole in tension.

Camera 0	Camera 1

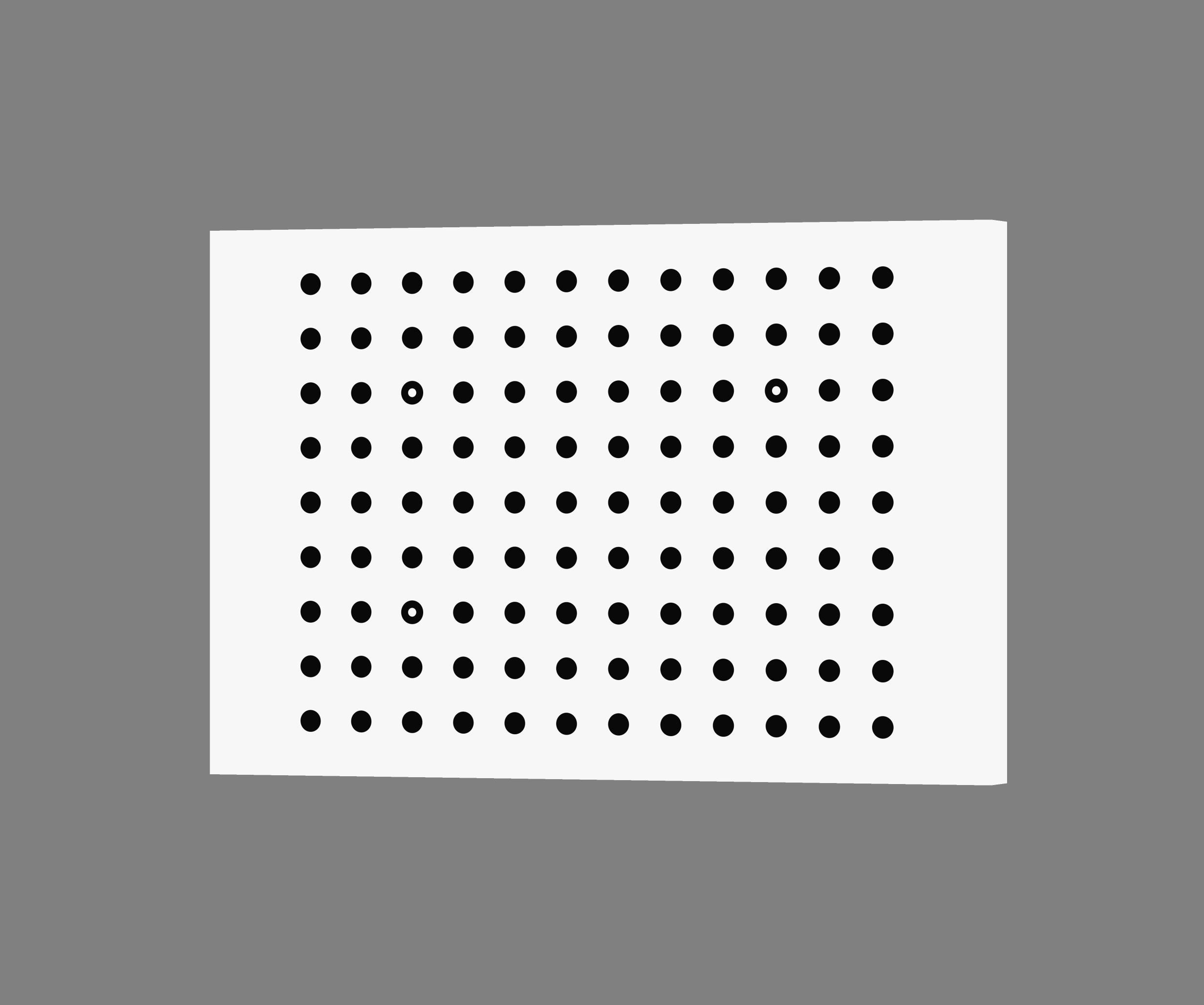

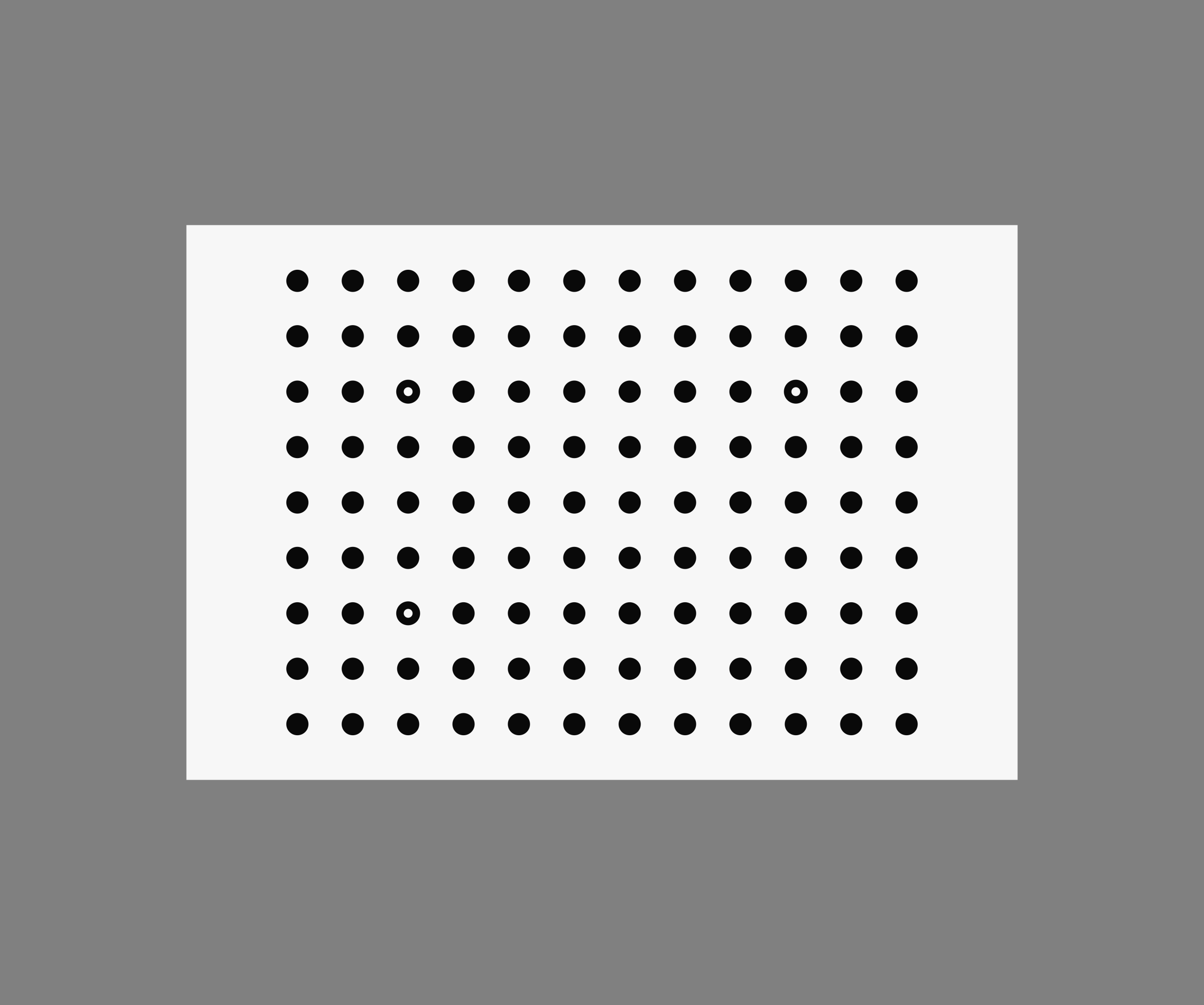

Stereo calibration target demo

Stereo calibration target renders using the DIC UQ camera setup.

Camera 0	Camera 1

Project Layout

The main Zig entry point for the rendering pipeline is the raster(...) family in ./src/riley/zig/riley.zig.

Useful top-level locations:

• src/: Zig demos, tests, benchmarks and the core Riley source
• src/riley/zig/: core Zig raster pipeling implementation
• src/riley/cython/: Cython->Python bindings for Riley
• src/riley/python/: Python utilities for setup and mesh manipulation
• src/riley/pydemos/: packaged Python demos
• src/riley/pytests/: packaged Python tests
• gold/: gold reference renders for regression testing
• out/: Zig render and benchmark output
• out_riley_py/: Python render output
• dev/README.md: detailed developer testing and benchmark notes

For a mathematical and architectural overview, see the engrXiv preprint: Riley: A computational framework for higher-order finite element image synthesis applied to digital image correlation uncertainty quantification.

C Interface

Riley provides a C-compatible API for use from other languages. The Python bindings use this interface through Cython, but it can also be called from C or from any language with a C FFI.

The public C ABI is intentionally fixed to the production Riley build with: precision=f64, SIMD=on. The extern types and functions live in src/riley/zig/c-riley.zig.

Citing Riley

If you have found Riley useful you can cite it using:

Fletcher, L., Hirst, J., and Bielajewa, W. (2026). Riley: A computational framework for higher-order finite element image synthesis applied to digital image correlation uncertainty quantification. engrXiv preprint. https://engrxiv.org/preprint/view/7300

@article{fletcher2026riley,
  title   = {Riley: A computational framework for higher-order finite element image synthesis applied to digital image correlation uncertainty quantification},
  author  = {Fletcher, Lloyd and Hirst, Joel and Bielajewa, Wiera},
  year    = {2026},
  journal = {engrXiv},
  note    = {Preprint},
  url     = {https://engrxiv.org/preprint/view/7300}
}

Contributors

• Lloyd Fletcher (ScepticalRabbit), UK Atomic Energy Authority
• Joel Hirst (JoelPhys), UK Atomic Energy Authority
• Wiera Bielajewa (WieraB), UK Atomic Energy Authority
• James Panayis (james-panayis), UK Atomic Energy Authority
• Megan Sampson (meganasampson), UK Atomic Energy Authority

Dedication

Named in memory of Riley, and for Feebee, her sister and bondmate. Without your love and support, this project would never have happened.
